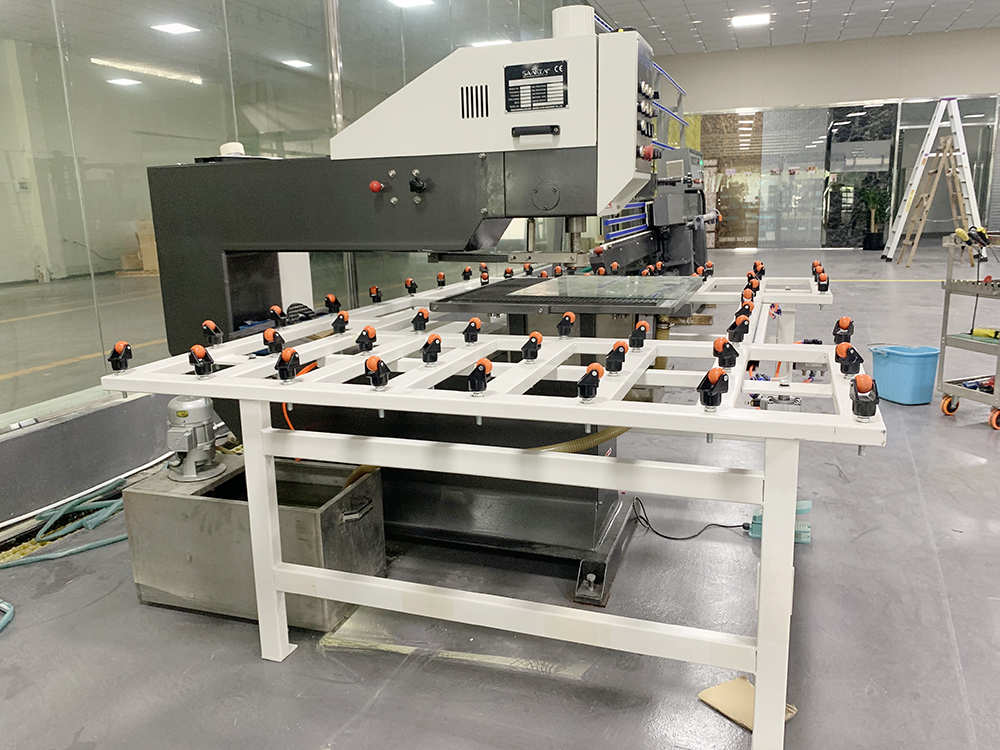

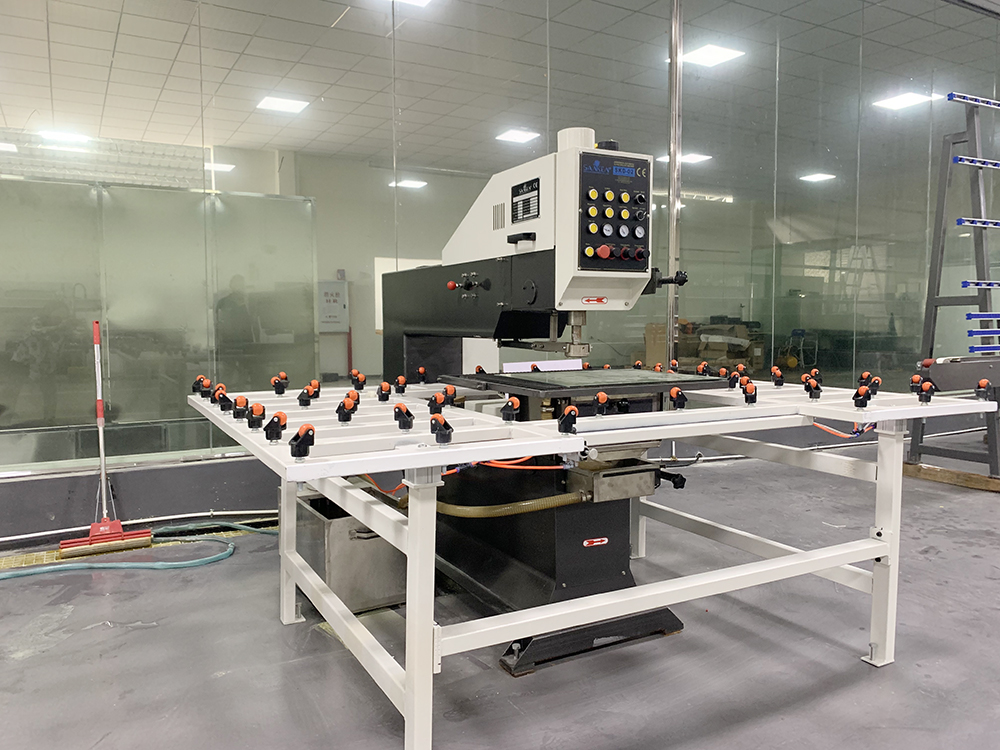

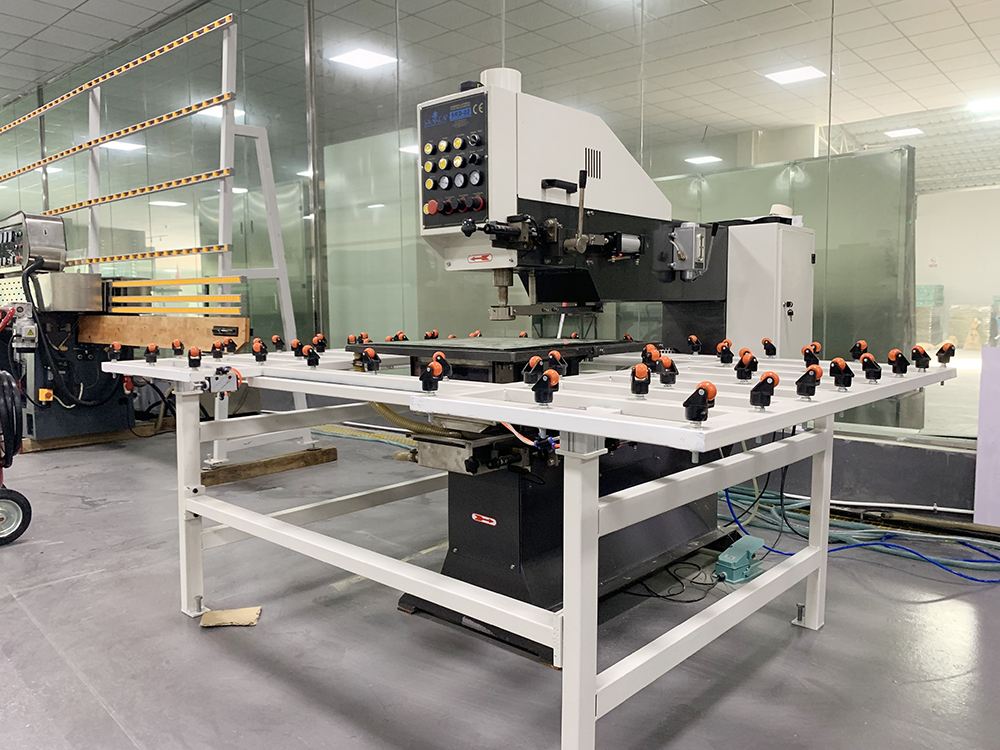

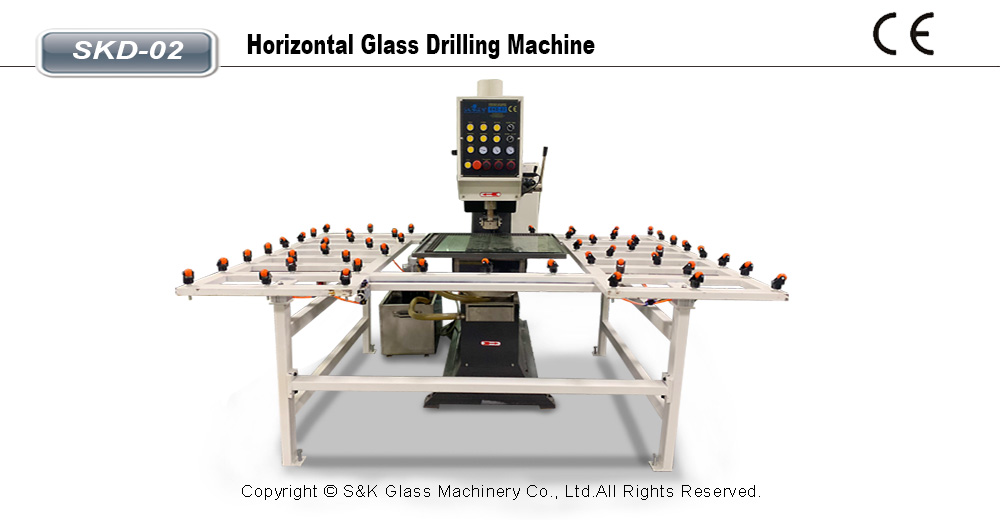

SKD-02 horizontal glass drilling machine adopts pneumatic clamping glass and infrared positioning. The upper and lower drills have successively drilled to greatly reduce the damage rate of the glass. The pressure of the worktable is raised and lowered. The equipment is equipped with racks, and the processing area is wide. Combining the functions of semi-automatic and automatic control, it can be replaced freely according to the actual situation. It is a very favorite device for customers.
Specifications
Code.NO.
Drilling Diameters
Thickness range
Power
Weight
Occupation area
(L x W x H)
SKD-02
5~140mm
3~25mm
4KW
1000kg
2500 x 2000 x 2200mm
Equipment application
It can be used to process and produce glass types: automobile glass, architectural glass, decorative glass, home appliance glass, furniture glass, lamp glass, tempered glass, art glass, etc. The drills with different diameters can be replaced according to product requirements to achieve processing purposes.
