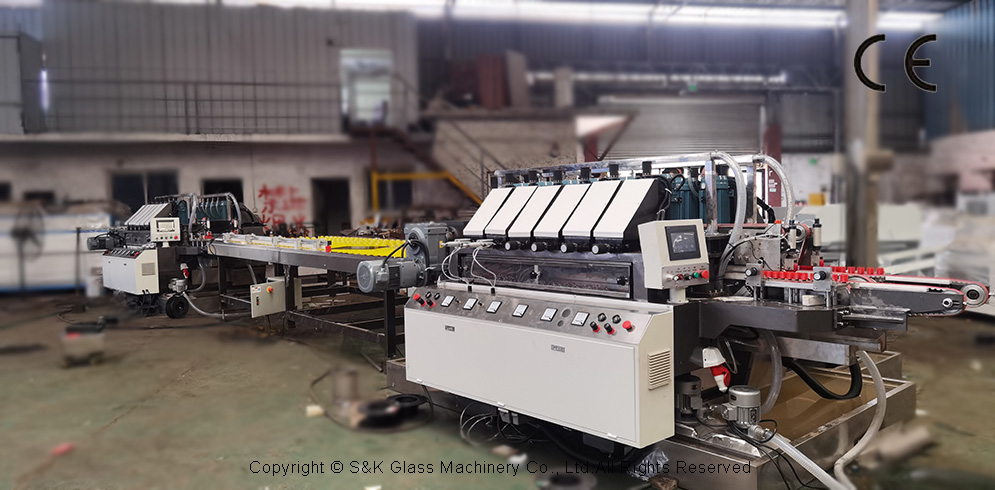

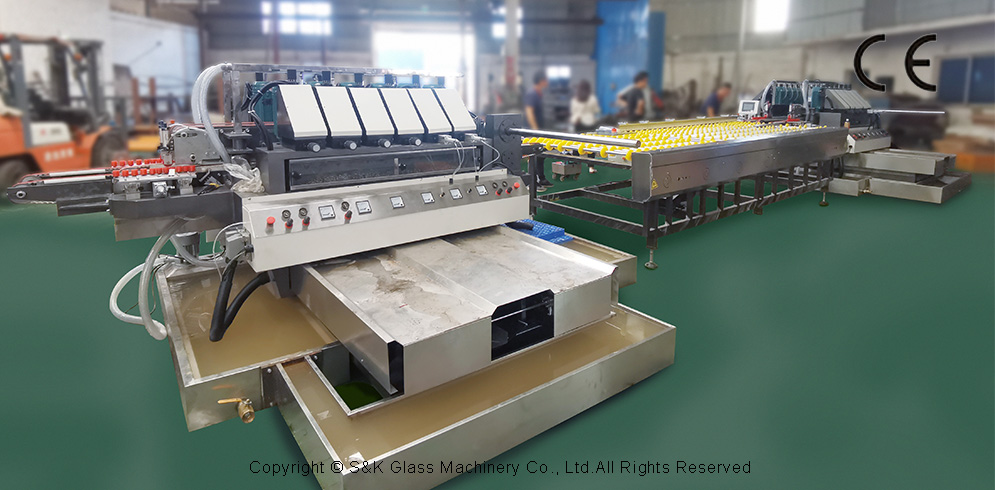

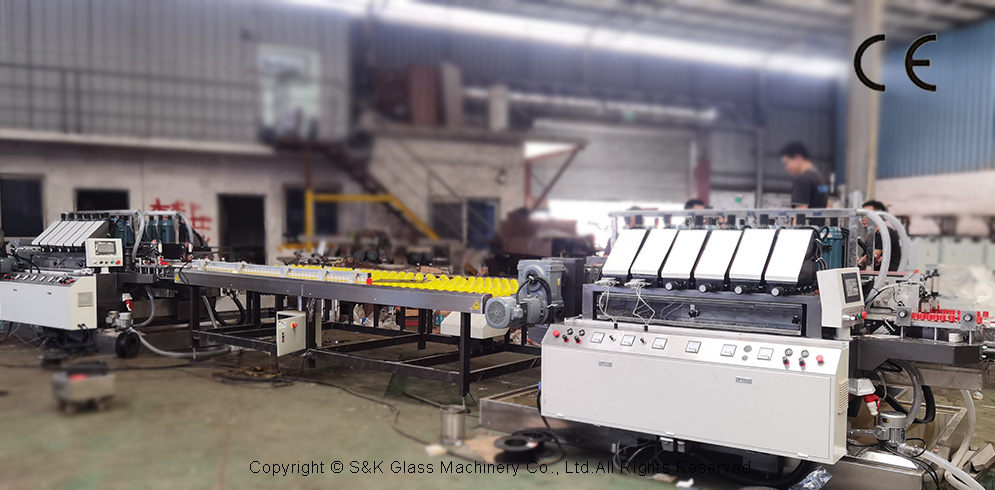

SKDR-2516AL Glass Straight Line Double Round Edging Machine
FEATURE
SANKEN glass double round edging machine, positioned at the highest end of the glass deep processing industry, we made this glass double round edging machine with the most advanced technology and the best materials. SANKEN glass double round edging machine has the advantages of round edge, OG, 2OG and 3OG edge high-efficiency processing, good glass polishing effect, high stability, extremely low failure rate, convenient maintenance and so on. The main components of the glass double round edging machine are composed of glass loading section, glass grinding section and glass unloading section. The main body of the device, made of stainless steel or other specially treated steel, is durable and corrosion resistant. The glass double round edging machine is all driven by servo motors, and the operation can be controlled by PLC touch screen. SANKEN's glass double round edging machine has a frequency conversion speed control system, which can automatically detect the size and thickness of glass of different sizes and thicknesses, and also has an automatic compensation function to ensure the best grinding and polishing effect. Glass double round edging machine maintenance is very simple, such as automatic supply of lubricating oil, automatic cleaning of the glass platen, to ensure that the moving parts of the glass are clean and tidy, and there is no glass slag, so as to ensure that the glass will not be damaged by gaps.
MAIN SPECIFICATION
1. Min glass width:400 mm 2. Max glass size:2500 * 1600 mm 3. Thickness:3-12 mm 4. Total power:73.4 KW 5. Water:Self-circulation,Tap water(civilian standards) 6.Voltage:380V /50Hz 7. Machine size:8700 x 5900 x 1300 mm 8.Weight:10200 kg 9. HS CODE:8464201000
ADVANTAGE
(1) SANKEN glass double round edging machine is easy to operate, and the PLC touch screen is convenient and quick to operate. (2) The conveying speed of the glass double round edging machine can be adjusted, 1-6 m/min. (3) The main frame of the glass double round edging machine is made of high-quality forged steel, which is stable, corrosion-resistant and durable. (4) The glass double round edging machine adopts SANKEN customized motor, with stable performance, low noise, less failure and long service life (5) The glass polishing effect is good, the processing error can be automatically compensated, the glass edge processing gloss is high, and the hand feel is smooth. (6) SANKEN's glass double round edging machine is designed with the latest foreign advanced technology and manufactured on the basis of Chinese glass processing technology. SANKEN glass double round edging machine has good sealing performance and high stability. (7) The water circulation design of the glass double round edging machine is reasonable and efficient, and the equipment drains smoothly and does not block, which ensures the processing effect and cleanliness of the glass. (8) The glass double round edging machine adopts the belt made of high-quality materials for glass conveying, which can add automatic detection of glass size to you, the glass conveying is smooth, and it can be connected with the washing machine to form a fully automatic production line to further improve the production efficiency. (9) The electronic control part of the glass double round edging machine adopts French Schneider electronic products, the circuit runs stably and is safe and secure. (10) SANKEN glass double round edging machine has the advantages of perfect polishing effect, high stability, extremely low failure rate and very convenient maintenance.
VENUE OF APPLICATION
SANKEN glass double round edging machine is specially designed for glass deep processing, such as glass engraving, glass tempering production line, furniture glass and screen printing line, etc.
